PRODUCT GUIDE

Disks

Manage persistent disks for Kubernetes and cloud servers, configure backup schedules and retention, and import raw or qcow2 disk images.

Disks provides persistent storage for Kubernetes workloads and cloud servers. CSI-backed volumes attach to pods through PersistentVolumeClaims so databases and other stateful workloads keep data across restarts and reschedules. Server disks are also available from the server detail page.

In the portal, Disks is where you see organization-level volumes, their capacity and status, hourly cost, and whether a disk is connected to a cluster.

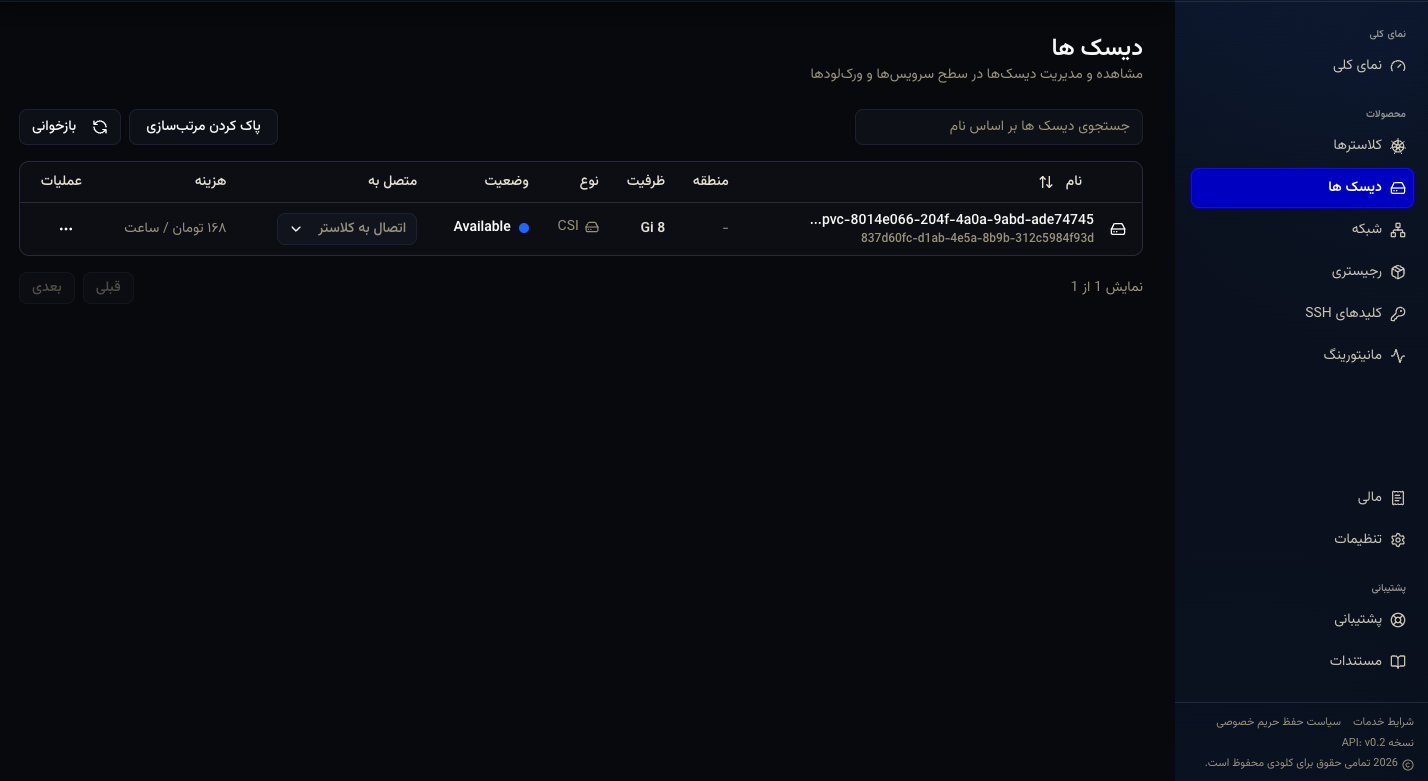

What you see in the panel

The page explains that you can view and manage disks at the service and workload level. Search by name, clear sorting, and refresh the table. Columns typically include name, region, capacity (for example GiB), type (CSI), status (Available), a connection action, hourly cost, and a row menu.

When to use it

Reach for Disks when StatefulSets, databases, or queues need durable block storage, or when a workload must keep its data even if the pod moves to another node.

Tutorial: work with disks

Open Disks

Select Disks in the portal navigation.

Find a volume

Use the search box (search disks by name) or sort the table. Confirm Status is suitable (for example Available) before attaching.

Connect to a cluster

When the UI offers Connect to cluster, use it to attach the volume to the target cluster. Then reference the volume from Kubernetes through the PVC and StorageClass path your cluster exposes. You can also inspect claims inside Clusters.

Watch cost and clean up

Review the hourly cost column. Terminate disks you no longer need; unused capacity still meters on Billing.

Server disks

Open a server and its Disks section to inspect attached storage. The shared disk list provides attachment and detachment actions for eligible disks. Check the target resource and current attachment before making a change; removing a disk from a running application can interrupt access to its data.

Backup policies and downloads

The backup controls support scheduled and on-demand runs. A policy defines a daily, weekly, or monthly frequency, a run time, and the number of retained copies. Review the time and timezone shown in the form and check the last successful run after enabling a policy.

Open Disks → Backups to inspect policies and backup artifacts. Available actions include starting a backup, editing or disabling a policy, downloading an artifact, and deleting an artifact. Some artifact actions require an additional verification step. Retained backups contribute to Billing, so choose retention deliberately.

Import a disk

The disk import form accepts raw and qcow2 images. Enter a disk name, select the format and file, and provide the requested capacity for qcow2. Submit the upload, then wait for the import status to become available before attempting to attach the disk. Review an error in the import status before starting another upload.
